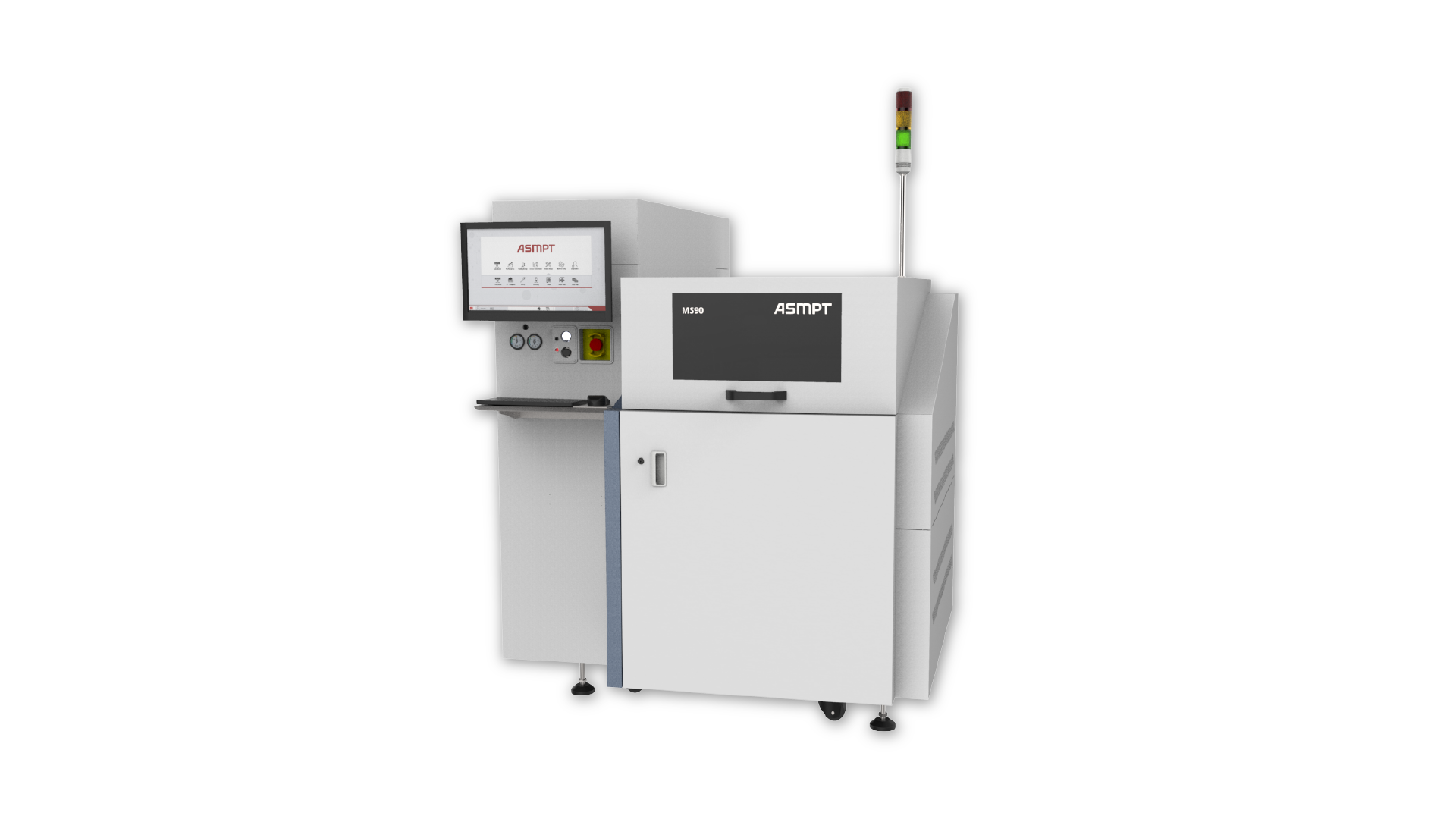

MS90

MS90 provides a high speed wafer map sorting solution for wide range of applications includes LED, PT/IR, etc. MS90 offers extra large effective binning area up to 105 x 105 mm or 125 x 125 mm and up to 200 output bin frames for large number of bin sorting. Optional up-look inspection capability enhances chip XY placement of CSP (chip scale package) LED. It is your best choice of map sorter.

Features

  • Extra Large effective binning area
    • With uplook: up to 105 x 105 mm
    • Without uplook: 125 x 125 mm
  • High sorting speed
    • Latest dual arm bond head system
    • Widely implementing high speed linear and direct drive rotary motion system
  • Precise XY placement*
    • Standard: ± 38 µm
    • Optional up-look inspection: ± 10 µm
      • Die size: 0.15 mm x 0.15 mm ~ 5 mm x 5 mm
  • Large wafer handling: up to Ø 8” picking area half mode
  • Up to 200 (25 slots x 8 magazines) output bin frames for large number of bin sorting
    • Standard: Max 150 bin grade
  • Motorized XY ejector for faster set-up time
  • Fast & accurate 1D & 2D barcode scanning system

Brochure

* All performance is package and material dependent
